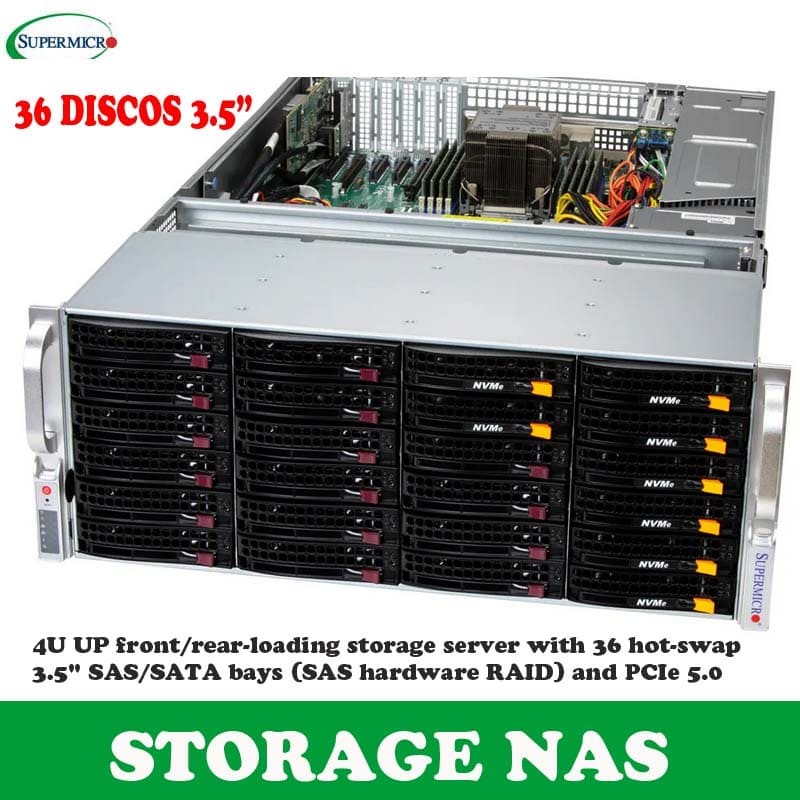

SuperMicro SSG-542B-E1CR36H

La Configuración ES A PEDIDO 90 días según Solicitud y Requiermiento del cliente Final, en base a estas Características:
SuperMicro Storage SuperServer SSG-542B-E1CR36H, HW RAID by Broadcom® SAS3916 connected on all 2.5"/3.5" drive bays, Single Intel® Xeon® 6700/6500 series processor up to 350W TDP, Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC), 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600, Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *, * Slot 1 & 2 are occupied by system's default controller and JBOD module, 4U hybrid hot-swap NVMe/SAS3/SATA3 main(3.5" x 36) and rear(2.5" x 2) drive bays *, * up to total 10 NVMe ports in the system, 1600W Redundant Titanium Level (96%) Hot-plug power supplies, 1,3,5 años de Garantía.

FICHA DEL PRODUCTO


Key Applications

    General Purpose Computing
    Data Center Enterprise Applications
    iSCSI SAN
    Database Processing & Storage
    Corporate Database
    Appliance Optimized Storage Building Blocks

Key Features

    HW RAID by Broadcom® SAS3916 connected on all 2.5"/3.5" drive bays
    Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
    Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)
    2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
    Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
    * Slot 1 & 2 are occupied by system's default controller and JBOD module
    4U hybrid hot-swap NVMe/SAS3/SATA3 main(3.5" x 36) and rear(2.5" x 2) drive bays *
    * up to total 10 NVMe ports in the system
    1600W Redundant Titanium Level (96%) Hot-plug power supplies


Product SKUs
SuperServer SSG-542B-E1CR36H
Motherboard
Super X14SBI-TF
Processor
CPU

    Single Socket E2 (LGA-4710)
    Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

Core Count

    P-cores: Up to 86C/172T; Up to 336MB Cache
    E-cores: Up to 144C/144T; Up to 108MB Cache

Note

    Supports up to 350W TDP CPUs (Air Cooled)

System Memory
Memory

    Slot Count: 8 DIMM slots/8 Channels
    Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
    View Memory Options

Memory Voltage

    1.1V

On-Board Devices
SATA

    4 x SlimSAS

SAS

    SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support

NVMe

    NVMe; RAID 0/1 support(Intel® VROC RAID key required)

Chipset

    System on Chip

Network Connectivity

    2 RJ45 10GbE with Intel® X550
    View AOC Options

Input / Output
LAN

    2 RJ45 10 GbE LAN ports (Intel® X550)
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)

USB

    2 USB 3.2 Gen1 ports(Header)
    2 USB 3.2 Gen1 ports(Rear)

Video

    1 VGA port

Serial

    1 COM port(header)

TPM

    1 TPM header

System BIOS
BIOS Type

    AMI 64MB UEFI

BIOS Features

    ACPI 6.5
    SMBIOS 3.7 or later
    UEFI 2.9

Management
Software

    SuperCloud Composer®
    Supermicro Server Manager (SSM)
    Super Diagnostics Offline (SDO)
    Supermicro Thin-Agent Service (TAS)
    SuperServer Automation Assistant (SAA) New!

Power configurations

    ACPI/APM Power Management

Security
Hardware

    Trusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

    Cryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown
    Runtime BMC Protections
    Supply Chain Security: Remote Attestation

PC Health Monitoring
CPU

    8 Phase-switching voltage regulator
    Monitors for CPU Cores, Chipset Voltages, Memory

FAN

    Fans with tachometer monitoring
    Pulse Width Modulated (PWM) fan connectors
    Status monitor for speed control

Temperature

    CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

Chassis
Form Factor

    4U Rackmount

Model

    CSE-847BTS-R1K68LPBP5

Dimensions and Weight
Height

    7"

Width

    17.2"

Depth

    27.5"

Package

    15" (H) x 27" (W) x 39" (D)

Weight

    Gross Weight: 102.5 lbs (46.4 kg)
    Net Weight: 65.5 lbs (29.7 kg)

Available Color

    Silver

Front Panel
Buttons

    Power On/Off

LED

    HDD activity
    Network activity
    Power status
    System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe) Configuration

    Default
        3 PCIe 5.0 x8 (in x8) LP slots
        3 PCIe 5.0 x16 (in x16) LP slots
    View AOC Options

Drive Bays / Storage
Drive Bays Configuration

    Default: Total 38 bays
        24 front hot-swap 3.5" SAS/SATA drive bays
        12 rear hot-swap 3.5" SAS/SATA drive bays
        2 rear hot-swap 2.5" SAS/SATA drive bays
    Option A: Total 10 bays
        8 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays
        2 rear hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    View Drive Options

M.2

    2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default))
    View M.2 Options

System Cooling
Fans

    7 Heavy Duty PWM 80x80x38mm Fan(s)

Air Shroud

    1 Air Shroud

Power Supply
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)    76 x 40 x 336 mm
Input    180-240Vac
100-140Vac
800W: 100-140Vac / 50-60Hz
1600W: 180-240Vac / 50-60Hz
+12V    Max: 66A / Min: 0A (100Vac-140Vac)
Max: 66A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (180Vac-240Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
5V SB    Max: 1A / Min: 0A
Output Type    Backplanes (gold finger)
Certification    Titanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
ROHS

    RoHS Compliant

Environmental Spec.

    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
