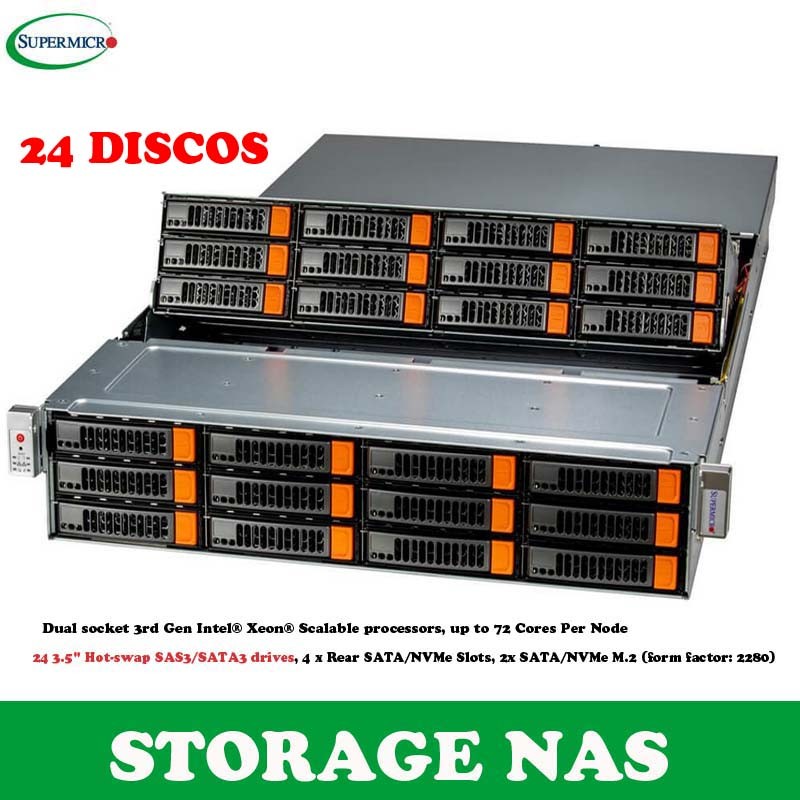

SuperMicro SSG-620P-E1CR24L

La Configuración ES A PEDIDO 90 días según Solicitud y Requerimiento del cliente Final, en base a estas Características:
SuperMicro Storage SuperServer SSG-620P-E1CR24L, Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node, 16 ECC DDR4-3200: LRDIMM/RDIMM, Dedicated PCIe 4.0 AIOM slot, 3 x PCIe 4.0 x16 Slots, Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node, 24 3.5" Hot-swap SAS3/SATA3 drives, 4 x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280), 5x 8cm hot-swap counter-rotate redundant PWM cooling fans,     1600W Redundant Power Supplies Titanium Level (96%), HBA Controller support via Broadcom® 3808, 1,3,5 años de Garantía. Aplicaciones clave: Servidor empresarial, iSCSI SAN, HPC, centro de datos, Procesamiento y almacenamiento de bases de datos, Base de datos corporativa, Componentes básicos de almacenamiento optimizado para dispositivos

Aplicaciones clave
Servidor empresarial
iSCSI SAN
HPC, centro de datos
Procesamiento y almacenamiento de bases de datos
Base de datos corporativa
Componentes básicos de almacenamiento optimizado para dispositivos

La Configuración de es según Solicitud y Requiermiento del cliente Final, en base a estas Caracteristicas:
    Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
    16 ECC DDR4-3200: LRDIMM/RDIMM
    Dedicated PCIe 4.0 AIOM slot
    3 x PCIe 4.0 x16 Slots
    Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
    24 3.5" Hot-swap SAS3/SATA3 drives, 4 x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
    5x 8cm hot-swap counter-rotate redundant PWM cooling fans
    1600W Redundant Power Supplies Titanium Level (96%)
    HBA Controller support via Broadcom® 3808


Product SKUs
SuperServer SSG-620P-E1CR24L
Motherboard
Super X12DSC-A6
Processor
CPU

    Dual Socket P+ (LGA-4189)
    3rd Gen Intel® Xeon® Scalable processors

Core Count

    Up to 38C/76T; Up to 57MB Cache per CPU

Note

    Supports 120W - 205W TDP CPUs (Air Cooled)

System Memory
Memory

    Slot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Ver opciones de memoria

Memory Voltage

    1.2V

On-Board Devices
Chipset

    Intel® C621A

Network Connectivity

    Via AIOM
    Ver opciones de AOC

Input / Output
LAN

    1 RJ45 1 GbE Dedicated BMC LAN port

USB

    2 USB 3.0 ports(rear)

Video

    1 VGA port

DOM

    2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type

    AMI 128MB SPI Flash EEPROM

Management


Power configurations

    Power-on mode for AC power recovery
    ACPI Power Management

Security
Hardware

    Trusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

    Cryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    System Lockdown


PC Health Monitoring
CPU

    4+1 Phase-switching voltage regulator
    Monitors for CPU Cores, Chipset Voltages, Memory

FAN

    Fans with tachometer monitoring
    Pulse Width Modulated (PWM) fan connectors
    Status monitor for speed control

Temperature

    Monitoring for CPU and chassis environment
    Thermal Control for fan connectors


Chassis
Form Factor

    2U Rackmount

Model

    CSE-826STS-R1K62P1

Dimensions and Weight
Height

    3.5"

Width

    17.2"

Depth

    34"

Package

    12" (H) x 29" (W) x 52" (D)

Weight

    Gross Weight: 74.5 lbs (33.79 kg)
    Net Weight: 52 lbs (23.59 kg)

Available Color

    Silver

Front Panel
Buttons

    Power On/Off

LED

    HDD activity
    Network activity
    Power status
    System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe) Configuration

    Default
        1 PCIe 4.0 x8 LP slot
        2 PCIe 4.0 x16 LP slots
        1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
    Ver opciones de AOC

Drive Bays / Storage
Drive Bays Configuration

    Default: Total 28 bays
        12 front hot-swap 3.5" SAS/SATA drive bays
        12 top-loading hot-swap 3.5" SAS/SATA drive bays
        2 rear hot-swap 2.5" SATA drive bays
        2 rear hot-swap 2.5" NVMe drive bays
    Ver opciones NVMe
    Ver opciones de accionamiento

M.2

    2 M.2 NVMe slots (M-key 2280/22110)
    Ver opciones M.2

System Cooling
Fans

    Up to 5 Heavy Duty 8cm Fan(s)

Air Shroud

    1 Air Shroud

Power Supply
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)    73.5 x 40 x 203 mm
Input    1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac
1600W: 200-240Vac / 50-60Hz
+12V    Max: 83A / Min: 0A (100Vac-127Vac)
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB    Max: 2.1A / Min: 0A
Output Type    Backplanes (gold finger)
Certification    Nivel de titanio94%+  Titanium Level


Operating Environment
ROHS

    RoHS Compliant

Environmental Spec.

    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (Non-Condensing)
    Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
