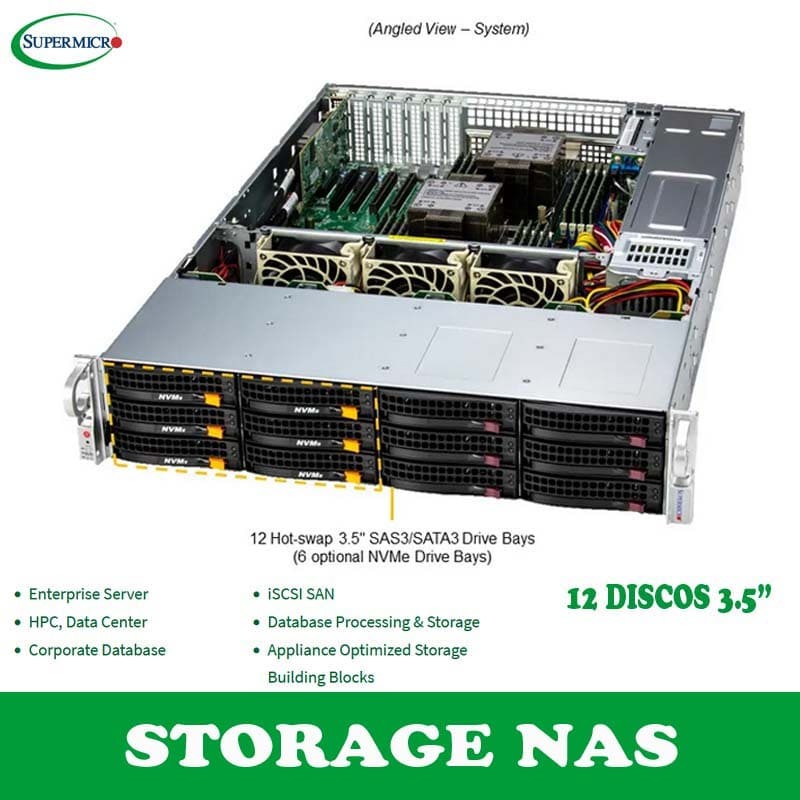

Supermicro SSG-621E-ACR12H

La Configuración ES A PEDIDO 90 días según Solicitud y Requerimiento del cliente Final, en base a estas Características:
SuperMicro Storage SuperServer SSG-621E-ACR12H , Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors, Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots, 2x 10 GbE onboard via Broadcom BCM57416, 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN, 12x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110), 3x 8cm hot-swap counter-rotate redundant PWM cooling fans, 1200W Redundant Power Supplies Titanium Level (96%), HW RAID support via Broadcom® 3916, 1,3 5 años de Garantía,

Key Applications

    Enterprise Server
    iSCSI SAN
    HPC, Data Center
    Database Processing & Storage
    Corporate Database
    Appliance Optimized Storage Building Blocks

Key Features

    Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
    2x 10 GbE onboard via Broadcom BCM57416
    1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    12x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
    3x 8cm hot-swap counter-rotate redundant PWM cooling fans
    1200W Redundant Power Supplies Titanium Level (96%)
    HW RAID support via Broadcom® 3916

 Product SKUs
SuperServer SSG-621E-ACR12H
Motherboard
Super X13DEI-T
Processor
CPU

    Dual Socket E (LGA-4677)
    Procesadores escalables Intel®Xeon® de 5ª generación / Intel® Xeon® de 4ª generación

Note

    Supports up to 270W TDP CPUs (Air Cooled)

System Memory
Memory

    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    Ver opciones de memoria

Memory Voltage

    1.1V

On-Board Devices
Chipset

    Intel® C741

Network Connectivity

    2 RJ45 10GbE with Broadcom® BCM57416
    Ver opciones de AOC

Input / Output
LAN

    1 RJ45 1 GbE Dedicated BMC LAN port
    2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1)

USB

    4 USB 3.0 ports(rear)

Video

    1 VGA port(Rear)

Serial

    1 COM port(Rear)

TPM

    1 TPM header

System BIOS
BIOS Type

    AMI 32MB SPI Flash EEPROM

Management
Software

    SuperCloud Composer
    Supermicro Server Manager (SSM)
    Supermicro Manager (SUM)
    Supermicro SuperDoctor® 5 (SD5)
    Super Diagnóstico Offline (SDO)
    Servicio Thin-Agent (TAS) de Supermicro
    Asistente de Automatización de SuperServer (SAA) ¡Nuevo!

Power configurations

    Power-on mode for AC power recovery
    ACPI Power Management

Security
Hardware

    Trusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

    Cryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown

PC Health Monitoring
CPU

    7+1 Phase-switching voltage regulator
    Monitors for CPU Cores, Chipset Voltages, Memory

FAN

    Fans with tachometer monitoring
    Pulse Width Modulated (PWM) fan connectors
    Status monitor for speed control

Temperature

    Monitoring for CPU and chassis environment
    Thermal Control for fan connectors

    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (Non-Condensing)
    Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
